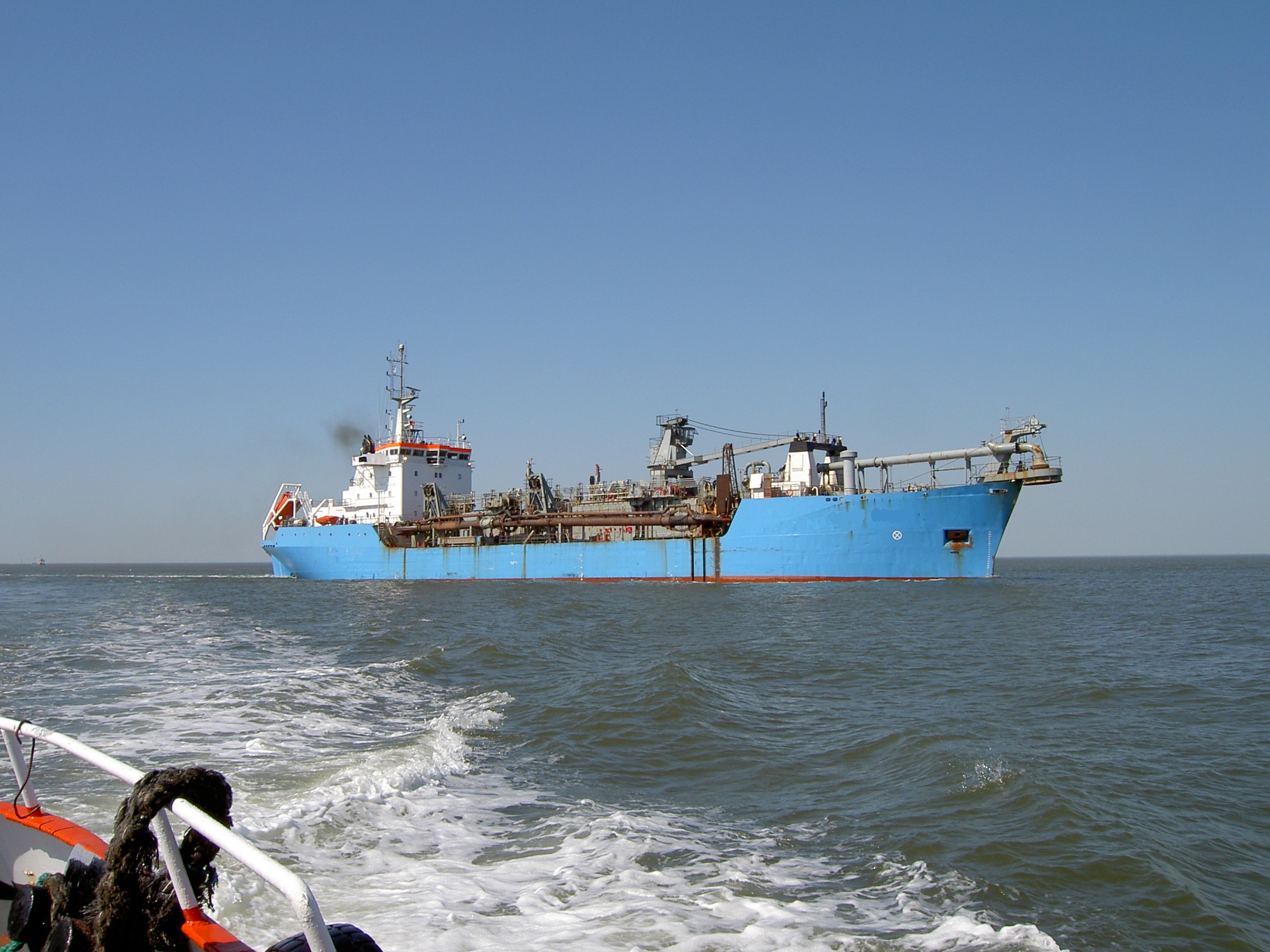

5,500 m3 trailing suction hopper dredger with bottom doors and pump ashore installation

5,500 m3 trailing suction hopper dredger with bottom doors and pump ashore installation
Sold HZ4000.11 photo website1.jpg
Specifications
Built/yard 1974, conversion 2007
Classification Germanischer Lloyd + 100 A5 Dredger + MC, expired
Dimensions 117.50 x 19.00 x 9.00 m
Hopper capacity approx. 5,500 m3, max. 5,760 m3
DWT approx. 8,280 tons
Diesel engine(s) 2 x MAK type 8M25, 2,500 kW/each
Propulsion twin screw, controllable pitch propellers
Bow thruster 600 kW
Generators 2,625 kW
Trailing pipe(s) 2, make IHC, diam. 900 mm
Dredging depth max. 35.00 m
Dredge pump(s) 2, make IHC, 4,000 kW
Jetwater pump 2, 650 kW/each
Bottom doors 2 x 10
Pump ashore installation yes, 800 mm pipe diam.
